ENERGY Consumption
IDT EQUIPMENT BEST ENERGY CONSUMPTION IN THE MARKET. SAVE ENERGY, SAVE WASTE, SAVE MONEY
INK Transfer
IDT developed & manufactured. Yields over 99% Ink Transfer. Resolution from screen to printed part. 1:1
3D Wrap
IDT Film wraps a wide variety of 3D materials. The only film that can wrap high resolution and keep full ink density
D10 NanoPress D10.1 D10.2 D10.3 Bespoke/Custom

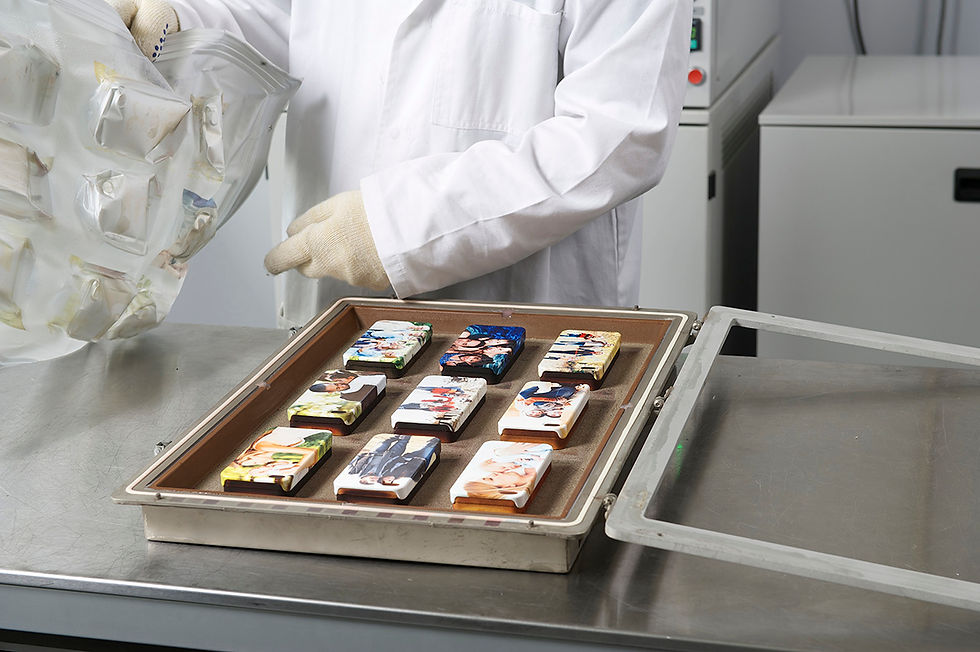

We would like to introduce you to the lineup of systems. The D10 Image Transfer Press was designed to deliver:
High throughput A low cost scalable solution Deliver high quality at low cost Provide fast return on investment
The key feature with the D10 series is that it offers a high level of flexibility. Ease of operation.
You are in control. With IDT Systems you always have the comfort that behind the products are a team of professionals available to assist you in whatever your needs.
We make the difference happen through extensive experience.

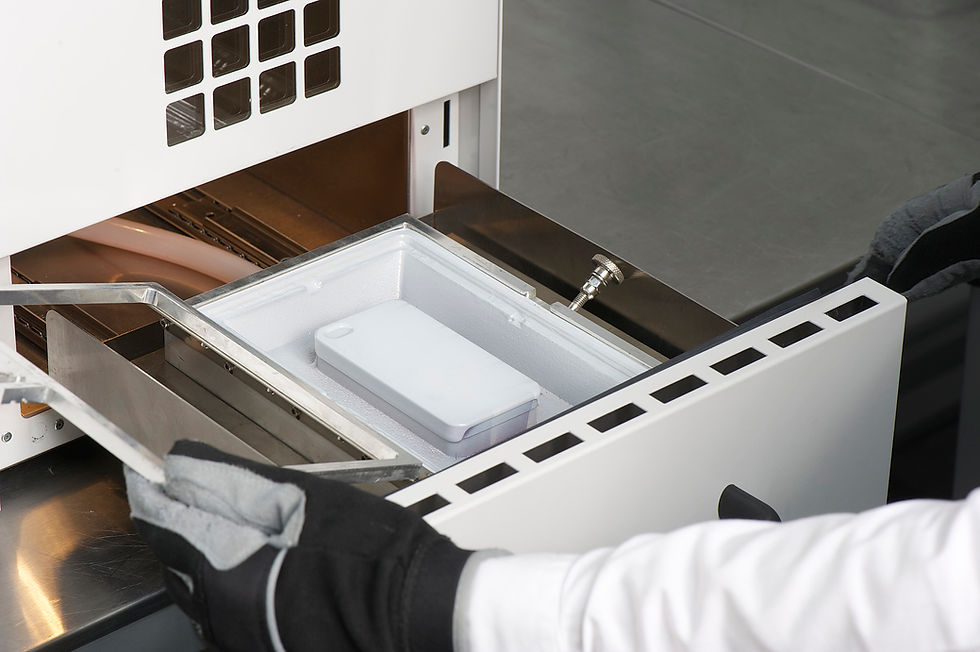

D10 NanoPress
The D10 Nanopress 3D Dye Sublimation System.
The Best Quality, most economical 1-UP machine on the market.
1 iPhone Cover/Cycle
1 case every 2.5 minutes
No pre-processing
No post-processing
D10.1
Whether you wish to produce small volumes, concepts or prototype designs the D10.1 3D Dye Sublimation System is the right machine for you. Add units to increase output. It’s flexible.
The D10.1 not only allows you to decorate one off designs but also to replicate what can be produced in mass production.
The D10.1 could be used within stores for instant personalization requirements.
4 iPhone Cover/Cycle
4 cases every 8-10 minutes
No pre-processing
No post-processing
The D10.1 operates 1 vacuum frame at a time, frame size 375mm x 300mm x 40mm deep. The frame depth is determined by the depth of the part to be decorated. We support your needs through production. We are behind you.
Dimensions
Weight
Power req
Power consumption
Vacuum Frame Size
Vacuum Frames req
Cycle Time
Vacuum Pump Size
Production space req
Optional Extras
Deeper Single Sided Vacuum Frame - Max depth 80mm
Bespoke - dependent on parts being decorated
Transformer will be supplied where necessary
371mm high x 555mm wide x 488mm deep
26kgs
13 Amp 230v - Single Phase
2.5KW
375mm x 300mm x 40mm
1 x single sided per cycle, plus 1 spare
9-13 minutes (subject to substrate)
260mm high x 170mm wide x 360mm deep
25m2
D10.2
The D10.2 3D Dye Sublimation System has been developed for medium to high production volumes. Create multiple cells to increase output.
Ideal for decorating phone covers – 480 parts in an 8 hour day, 2,400 phone covers per week.
The D10.2 operates on a 30 AMP single-phase supply.
12 iPhone Cover/Cycle
12 cases every 12 minutes
No pre-processing
No post-processing
The D10.2 can operate with 2 vacuum frames at one time, frame size 390mm x 375mm x 40mm deep. The frame depth is determined by the depth of the part to be decorated.
Dimensions
Weight
Power req
Power consumption
Vacuum Frame Size
Vacuum Frames req
Cycle Time
Vacuum Pump Size
Production space req
Optional Extras
Deeper Single Sided Vacuum Frame - Max depth 65mm
Double Sided Vacuum Frame
Bespoke - dependent on parts being decorated
Transformer will be supplied where necessary
1,479mm high x 787mm wide x 644mm deep
143 kgs
30 Amp 230v - Single or 3 Phase
10KW
390mm x 450mm x 40mm
2 single sided per cycle, plus 2 spares
9-13 minutes (subject to substrate)
1 x Vacuum Pump.
30m2
D10.3
The D10.3 3D Dye Sublimation System has been developed for high production volumes. Create multiple cells to increase output.
The D10.3 can be run on Single or 3 Phase.
27 iPhone Cover/Cycle
27 cases every 15 minutes
No pre-processing
No post-processing
The D10.3 can operate with 3 vacuum frames at one time, frame size 562mm x 390mm x 40mm deep. The frame depth is determined by the depth of the part to be decorated.
Dimensions
Weight
Power req
Power consumption
Vacuum Frame Size
Vacuum Frames req
Cycle Time
Vacuum Pump Size
Production space req
Optional Extras
Deeper Single Sided Vacuum Frame - Max depth 65mm
Double Sided Vacuum Frame
Bespoke - dependent on parts being decorated
Transformer will be supplied where necessary
1,557mm high x 766mm wide x 811mm deep
174 kgs
32 Amp 230v - Single or 3 Phase
10KW
562mm x 390mm x 40mm
3 single sided per cycle, plus 3 spares
9-13 minutes (subject to substrate)
3 Vacuum Pumps.
40m2
Custom Bespoke Systems
Your Valued Order
IDT Systems design and manufacture all equipment.
We are able to accomodate our customers needs by building custom machines to suit their production decoration needs.
We understand that specific customer may want to decorate a whole range of different products so we can work on custom solutions to fit your business model.
Being the designers and manufacturers of our equipment we can easily work with our customers to adapt our technology to fit many applications.
Just Ask.
Your Equipment Order is unique to you and your needs. We manufacture all of our equipment. We are not resellers.
1
Understand Your Needs
2
Build A Quotation
3
Machine & Equipment
Is Built To Order
4
Lead Time
4-6 Weeks
If you utilise any of our other services such as Product Design, we build this into the order program and give you the deliverables with lead times.
Performance guidelines supported by 7 years of experience in industry delivering personalization/mass customization solution to major brands.
We have shipped over 500 systems to over 45 countries. Our system delivers a rapid ROI and a very high quality product with high yields.
Quality is an essential part of the companies deliverable.
Each element is produced in an ISO 9000/ISO 14000 environment. The final product meets consumer electronics industry requirements and specifications.
IDT Systems deliver quality solutions and provide customer support through its partner and subsidiaries around the world.
